LUXX Light + Retail Technology

eShelf®
Digital Displays
for Smart Shelving

Vibrant LCD screens that bring your marketing content straight to the shelf — from plug-and-play promo loops to cloud-managed campaigns across thousands of stores.

Browse Products Request a Quote
2
Display Formats
15
Screen Models
5yr
Warranty
Android Platform

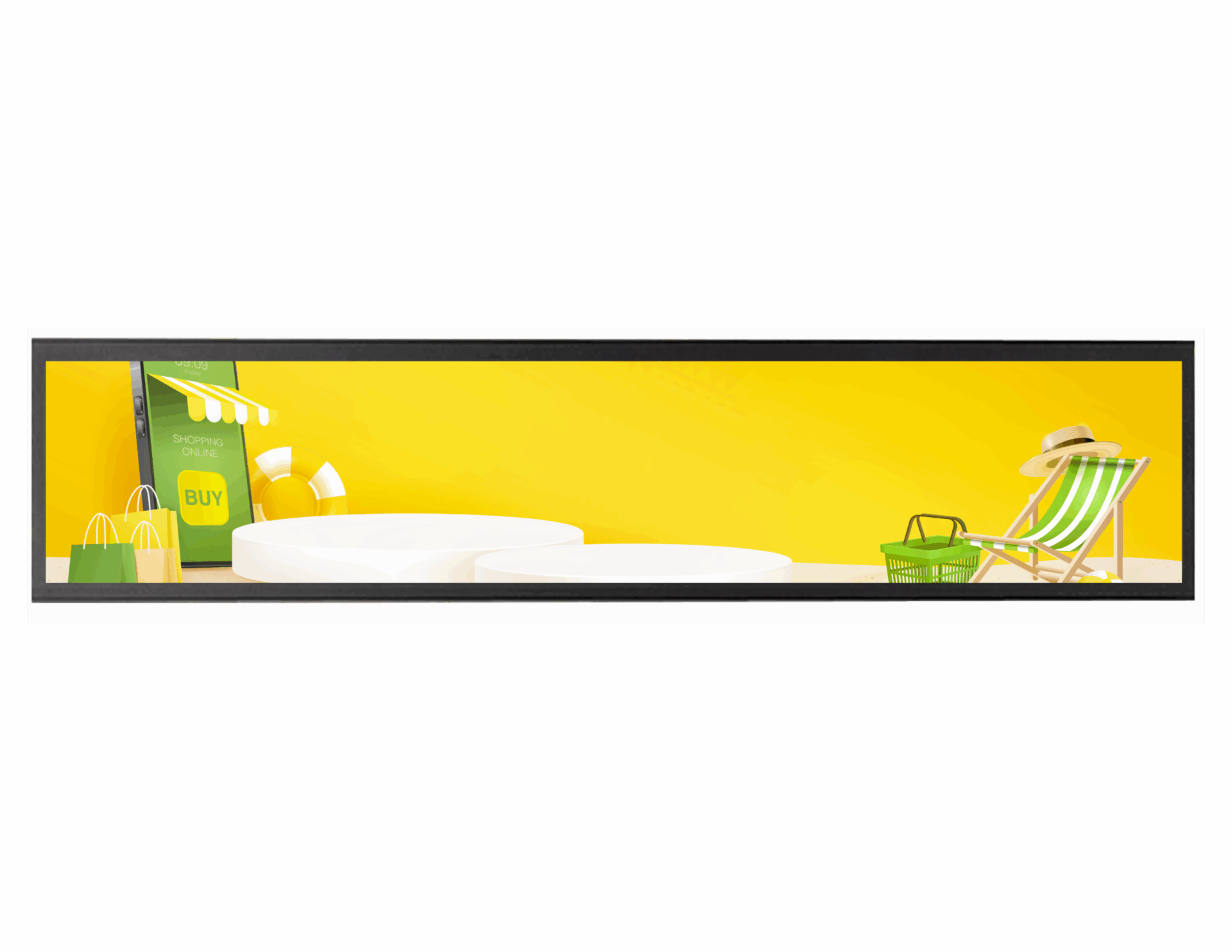

eShelf Header Display
eShelf® Header
16.4″ – 47.6″ · Android Platform
Peak Brightness
700 nits
Lifespan
30,000 hrs
Content Delivery

Two ways to get your content
from marketing to the shelf

Choose the deployment model that fits your operation — from a simple USB rollout to full cloud management on your own V2D platform.

01
💾

Plug & Play

  • Pre-installed media player — arrives ready to go
  • Load videos onto a USB drive, plug it in, restart the unit
  • Content appears automatically — no setup required
  • Built for stand-alone displays and locations without network connectivity
02
☁️

V2D Cloud CMS

  • Powered by V2D — Vision2Display's own cloud platform, not third-party software
  • Schedule and publish content remotely, any time
  • Update one store or thousands instantly from one dashboard
  • Built for multi-store retailers and franchise networks
Applications

One display family.
Every retail vertical.

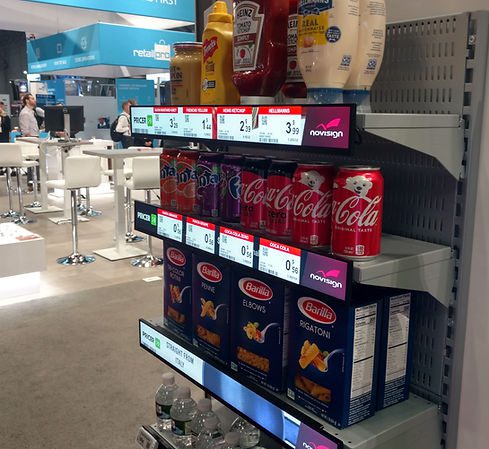

eShelf stretch screens in a supermarket aisle

Supermarket & Grocery

eShelf stretch screens mount directly beneath products on standard shelving, showing live pricing, promotions and product information exactly where shoppers are looking.

Live pricing and promo content at eye level
Runs alongside standard shelf rail systems
Update pricing storewide without reprinting tags
Stand-alone or network-managed operation

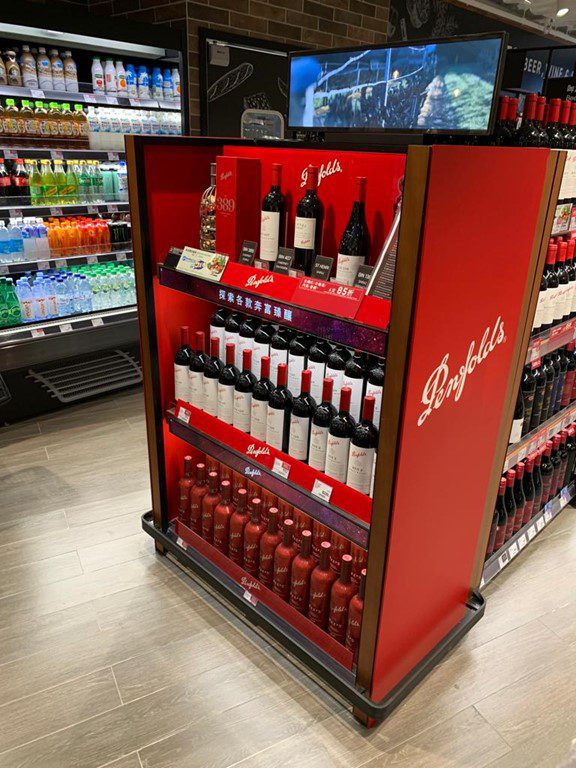

eShelf stretch screen in a wine retail display

Wine & Fine Dining

Built into branded fixture displays, eShelf screens add motion and storytelling to premium wine ranges — reinforcing provenance and vintage detail at the point of decision.

Brand video loops on dedicated fixtures
Highlights vintage, origin and tasting notes
Reinforces premium positioning at shelf
Content updated centrally across venues

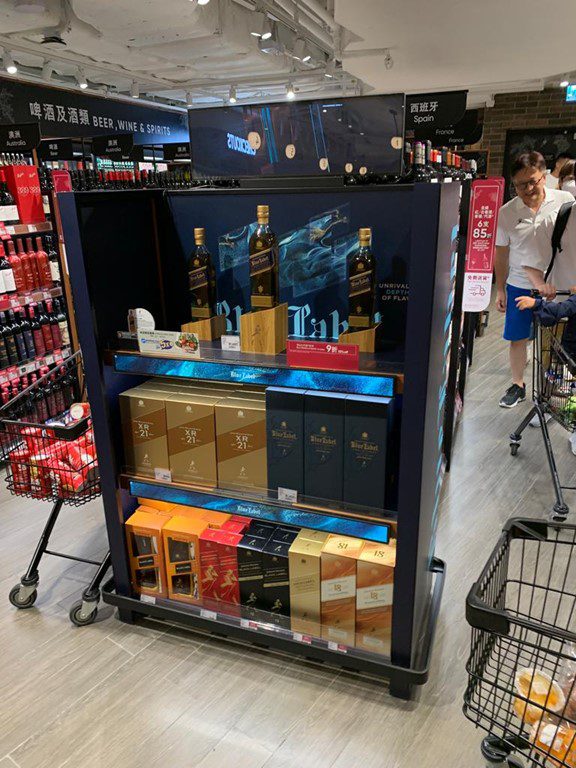

eShelf stretch screen in a spirits retail display

Spirits & Liquor

From single-malt ranges to gift-set promotions, eShelf displays turn a spirits bay into an interactive showcase without permanent signage or reprinting.

Feature new releases and limited editions
Cross-sell gift sets and bundles
Swap seasonal campaigns in minutes
Motion-activated content on approach

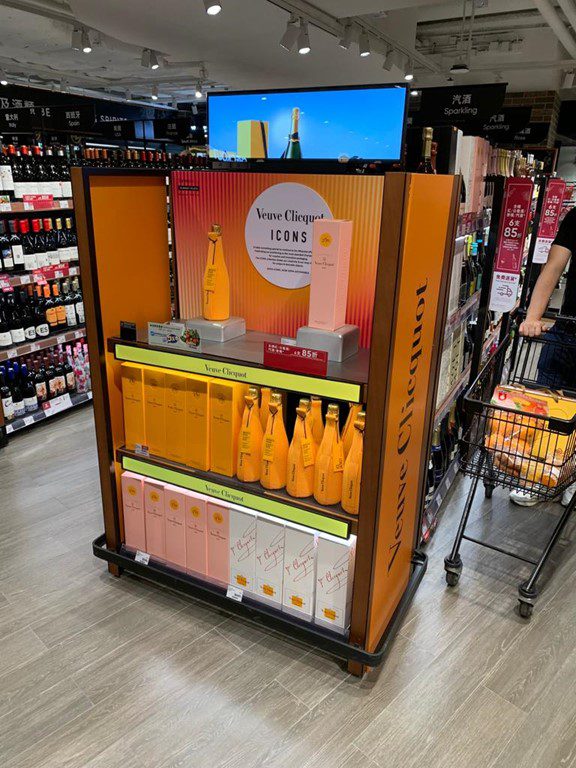

eShelf stretch screen in a champagne and luxury retail display

Champagne & Luxury Retail

High-end retailers use eShelf to match premium packaging with equally premium presentation — vivid HD video built into the fixture itself, not a separate screen bolted on.

HD video matched to premium packaging
Integrates into custom fixture builds
Ideal for boutique and duty-free formats
Consistent branding across every location
Display Family

One display family.
Six ways to sell.

eShelf® brings dynamic digital content directly to retail shelving — a single hardware family covering promotion, pricing and interaction.

🎥
Videos & Promotions Full-motion HD content on demand
🏷️
Electronic Shelf Label Live pricing alongside your promo content
👆
Interactive Touchscreen Shoppers browse and learn at the shelf
🚶
Motion Detection Content wakes as shoppers approach
🤖
Android Platform Runs on V2D, our own cloud CMS
📺
HD LCD Bright, sharp panels built for retail lighting
Live Preview
▶ PROMO
Now Playing
$12.99
SPECIAL
Info
Product Detail
👋 Active
Motion Detected

Simulated display examples

Product Range

eShelf® Stretch Screen Series

10 models from 8.8″ to 47.1″ — shelf-edge screens that mount beneath the product for eye-level content, electronic shelf labelling and interaction.

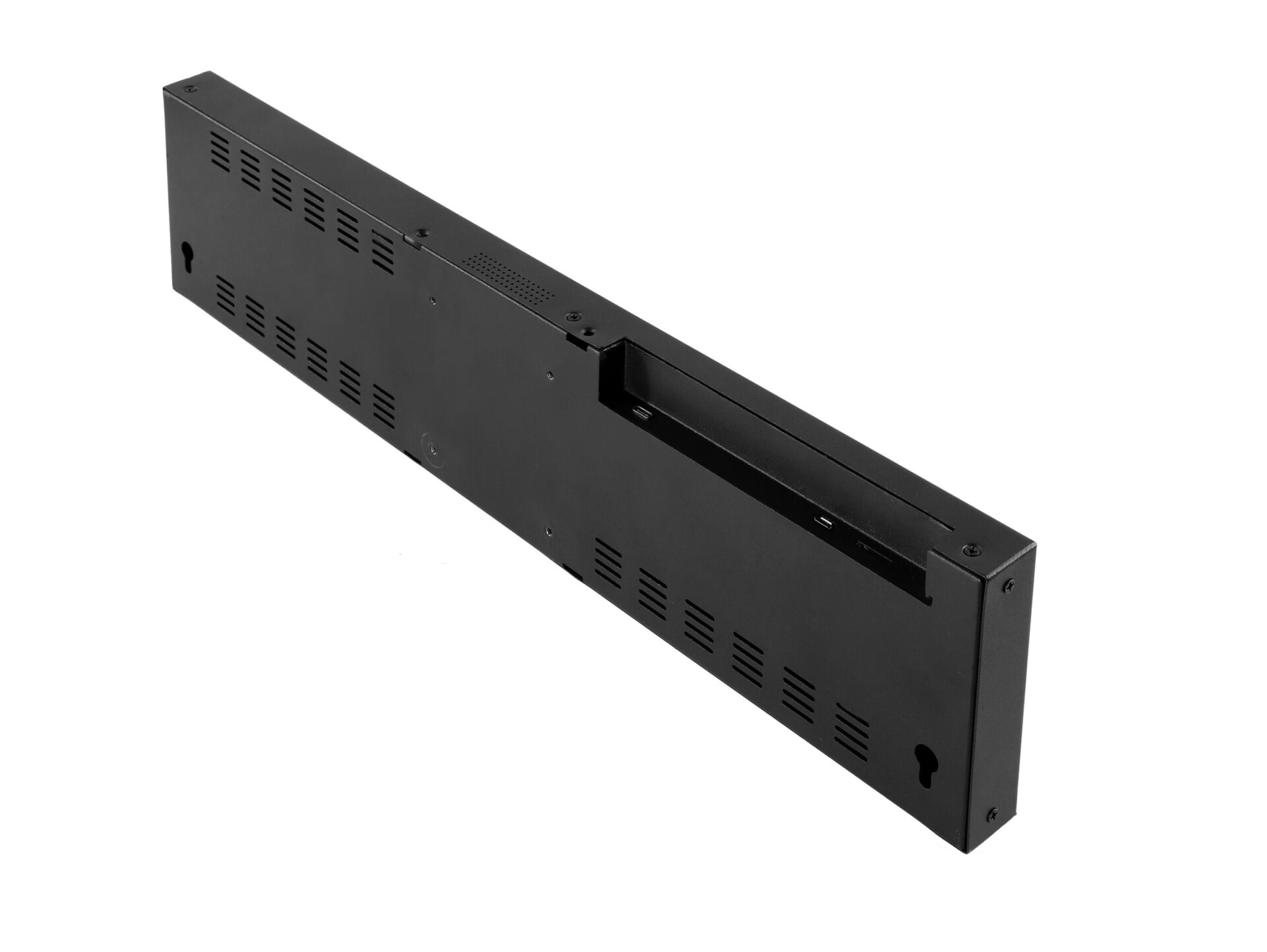

eShelf ESP10 Stretch Screen
ESP10

8.8" eShelf® Stretch Screen

Specifications
Screen Size8.8"
Resolution1920 × 480 px
Physical Dimensions240.6 × 69.6 × 16 mm
Brightness500 nits
SystemAndroid 8.1
Input Voltage12V DC
Power Consumption≤10W
AvailabilityWide-voltage (15–36V DC) variant available
Request a Quote Ask a Question
eShelf ESP15 Stretch Screen
ESP15

15.6" eShelf® Stretch Screen

Specifications
Screen Size15.6"
Resolution1920 × 1080 px
Physical Dimensions357 × 211.4 × 19 mm
Brightness300 nits
SystemAndroid 8.1
Input Voltage12V DC
Power Consumption<20W
AvailabilityWide-voltage variant available
Request a Quote Ask a Question
eShelf ESP20 Stretch Screen
ESP20

16.4" eShelf® Stretch Screen

Specifications
Screen Size16.4"
Resolution1366 × 238 px
Physical Dimensions432.3 × 93.9 × 17.8 mm
Brightness500 nits
SystemAndroid 8.1
Input Voltage12V DC
Power Consumption≤18W
Availability—
Request a Quote Ask a Question
eShelf ESP30 Stretch Screen
ESP30

23.1" eShelf® Stretch Screen

Specifications
Screen Size23.1"
Resolution1920 × 158 px
Physical Dimensions599 × 62 × 16.2 mm
Brightness700 nits
SystemAndroid 8.1
Input Voltage12V DC
Power Consumption≤18W
AvailabilityWide-voltage variant available
Request a Quote Ask a Question
eShelf ESP35 Stretch Screen
ESP35

24" eShelf® Stretch Screen

Specifications
Screen Size24"
Resolution1920 × 360 px
Physical Dimensions617.5 × 137 × 27.2 mm
Brightness700 nits
SystemAndroid 8.1
Input Voltage12V DC
Power Consumption≤20W
AvailabilityWide-voltage variant available
Request a Quote Ask a Question
eShelf ESP45 Stretch Screen
ESP45

29" eShelf® Stretch Screen

Specifications
Screen Size29"
Resolution1920 × 540 px
Physical Dimensions721 × 226.25 × 40.3 mm
Brightness700 nits
SystemAndroid 8.1
Input Voltage12V DC
Power Consumption≤30W
AvailabilityWide-voltage variant available
Request a Quote Ask a Question
eShelf ESP50 Stretch Screen
ESP50

35" eShelf® Stretch Screen

Specifications
Screen Size35"
Resolution2880 × 158 px
Physical Dimensions891.6 × 60.4 × 16 mm
Brightness400 nits
SystemAndroid 9.0
Input Voltage12V DC
Power Consumption≤18W
AvailabilityWide-voltage variant available
Request a Quote Ask a Question
eShelf ESP55 Stretch Screen
ESP55

37" eShelf® Stretch Screen

Specifications
Screen Size37"
Resolution1920 × 540 px
Physical Dimensions914.9 × 280.9 × 45.7 mm
Brightness700 nits
SystemAndroid 8.1
Input Voltage12V DC
Power Consumption≤40W
AvailabilityWide-voltage variant available
Request a Quote Ask a Question
eShelf ESP60 Stretch Screen
ESP60

37.8" eShelf® Stretch Screen

Specifications
Screen Size37.8"
Resolution2880 × 158 px
Physical Dimensions977 × 70 × 21 mm
Brightness500 nits
SystemAndroid 9.0
Input Voltage12V DC
Power Consumption≤28W
AvailabilityWide-voltage variant available
Request a Quote Ask a Question
eShelf ESP65 Stretch Screen
ESP65

47.1" eShelf® Stretch Screen

Specifications
Screen Size47.1"
Resolution3840 × 160 px
Physical Dimensions1214.2 × 67.7 × 28.2 mm
Brightness500 nits
SystemAndroid 9.0
Input Voltage12V DC
Power Consumption≤35W
AvailabilityWide-voltage variant available
Request a Quote Ask a Question
Product Range

eShelf® Header Series

Vibrant top-of-shelf LCD signage on a magnetic, movable mounting bracket — 5 models from 16.4″ to 47.6″, built for 24/7 continuous operation.

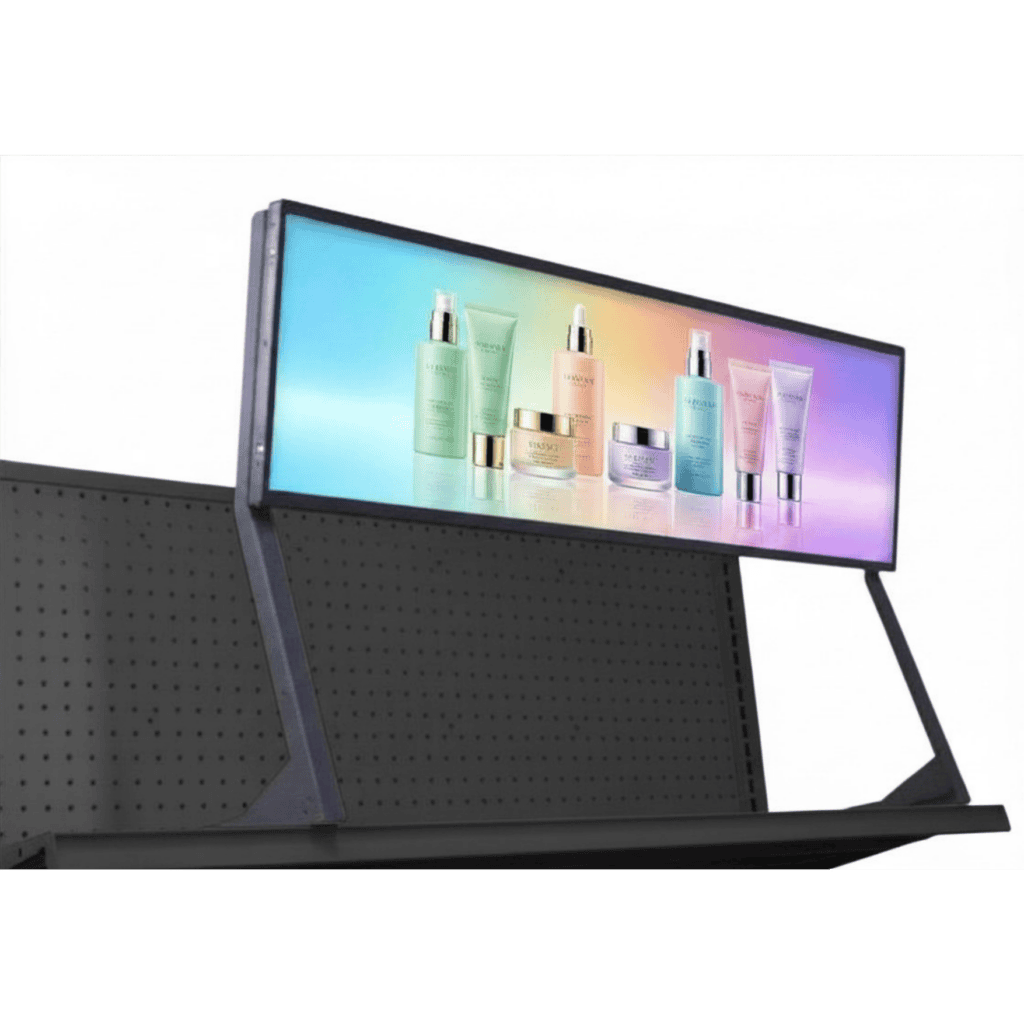

eShelf ESP20 Header Display
ESP20

16.4" eShelf® Header Display

Specifications
Screen Size16.4"
Resolution1366 × 238 px
Brightness500 nits
Input Voltage12V DC
Power Consumption≤18W
MountingMagnetic, movable header bracket
CertificationUL Listed · 5-Year Warranty
SKULUXX-ESP20-500-12-8.1-001
Request a Quote Ask a Question
eShelf ESP35 Header Display
ESP35

24" eShelf® Header Display

Specifications
Screen Size24"
Resolution1920 × 360 px
Brightness700 nits
Input Voltage12V DC or 15–36V DC
Power Consumption≤20W
MountingMagnetic, movable header bracket
CertificationUL Listed · 5-Year Warranty
SKULUXX-ESP35-700-12-11-003
Request a Quote Ask a Question
eShelf ESP45 Header Display
ESP45

29" eShelf® Header Display

Specifications
Screen Size29"
Resolution1920 × 540 px
Brightness700 nits
Input Voltage12V DC or 15–36V DC
Power Consumption≤30W
MountingMagnetic, movable header bracket
CertificationUL Listed · 5-Year Warranty
SKULUXX-ESP45-700-12-11-003
Request a Quote Ask a Question
eShelf ESP55 Header Display
ESP55

37" eShelf® Header Display

Specifications
Screen Size37"
Resolution1920 × 540 px
Brightness700 nits
Input Voltage12V DC or 15–36V DC
Power Consumption≤40W
MountingMagnetic, movable header bracket
CertificationUL Listed · 5-Year Warranty
SKULUXX-ESP55-700-12-11-003
Request a Quote Ask a Question
eShelf ESP75 Header Display
ESP75

47.6" eShelf® Header Display

Specifications
Screen Size47.6"
Resolution1920 × 360 px
Brightness700 nits
Input Voltage15–36V DC
Power Consumption≤55W
MountingMagnetic, movable header bracket
CertificationUL Listed · 5-Year Warranty
SKULUXX-ESP75-700-12-11-002
Request a Quote Ask a Question

Ready to light up your shelves?

Vision2Display supplies eShelf® displays with local Australian support, installation and content setup. Contact us today for a tailored quote.

Get a Quote Call us
