New Product Category
Electronic
Shelf Labels
for Smart Retail
Next-generation pricing technology that eliminates paper tags — with instant wireless updates, 10-year battery life, and seamless ERP integration.
4-Colour EPD
LS0420
4.2" · 400×300 · B/W/R/Y
Battery Life
10 Years
Sync Speed
<100ms
15+
ESL Models
10yr
Battery Life
<100ms
Update Speed
Technology
Built for the modern
retail environment
Powered by the WDOP platform — a complete end-to-end ecosystem connecting your ESL hardware, software, and ERP systems.
2.4G Proprietary Communication
- Hacker-Resistant — Military-grade encryption with dynamic key rotation
- Interference-Immune — Intelligent channel-hopping technology
- Ultra-Low Power — Industry-leading 10-year battery life
- Lightning-Fast — Sub-100ms store-wide synchronisation
WDOP Management Platform
- Universal Compatibility — Native integration with all major ERP & third-party systems
- Flexible Connectivity — API/Middleware options for painless deployment
- Cross-Domain Sync — Real-time data flow between front store and warehouse
- Cloud-Based — Manage your entire network from anywhere
Applications
One system.
Every retail format.

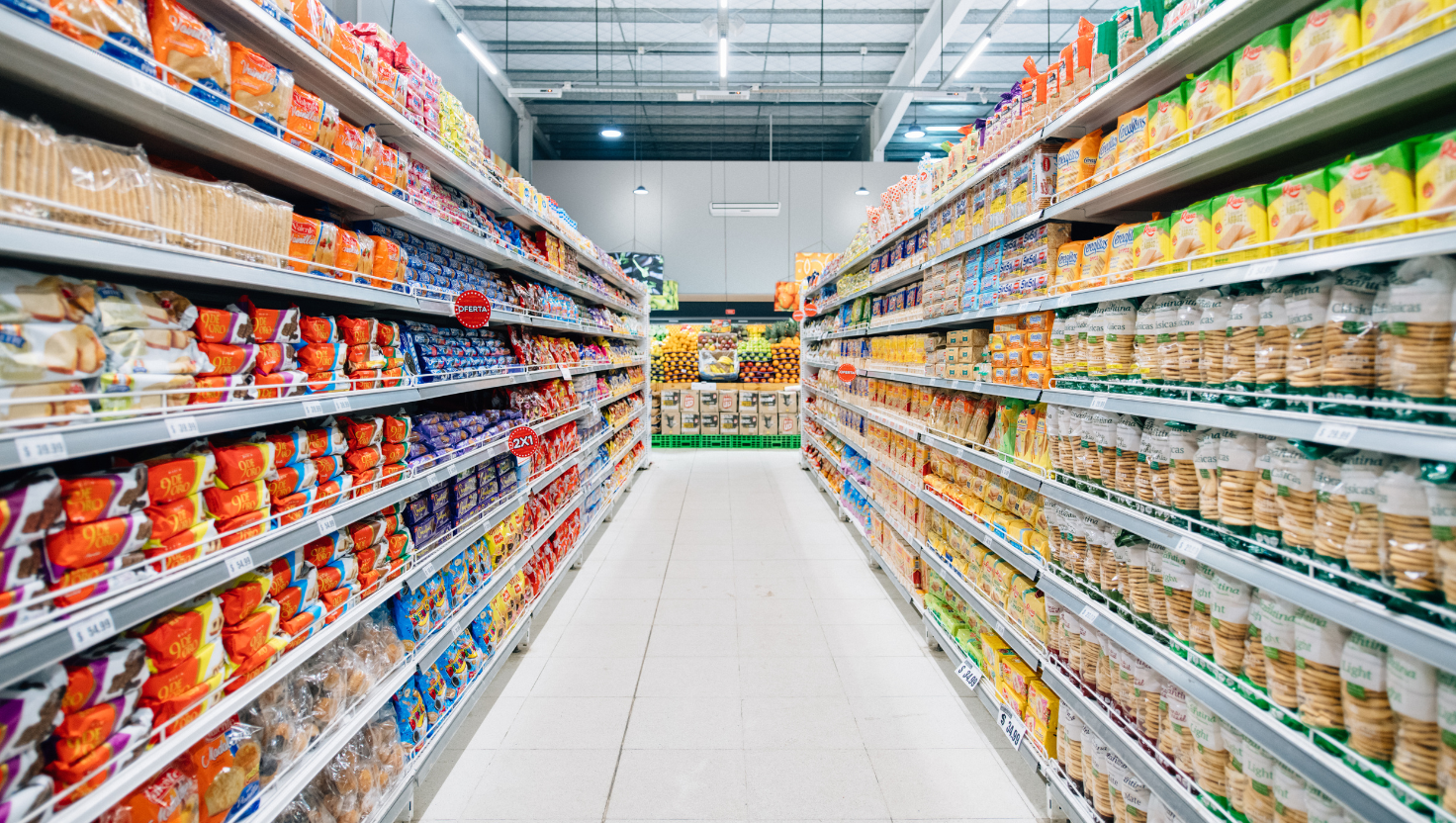

Supermarket
Transform your supermarket's pricing operations. Update hundreds of labels simultaneously during a promotion or price change — no paper, no errors, no labour cost.
Instant price synchronisation across all shelves
Promotional theme switching in seconds
Reduce pricing compliance risk
Integrate directly with your existing POS/ERP

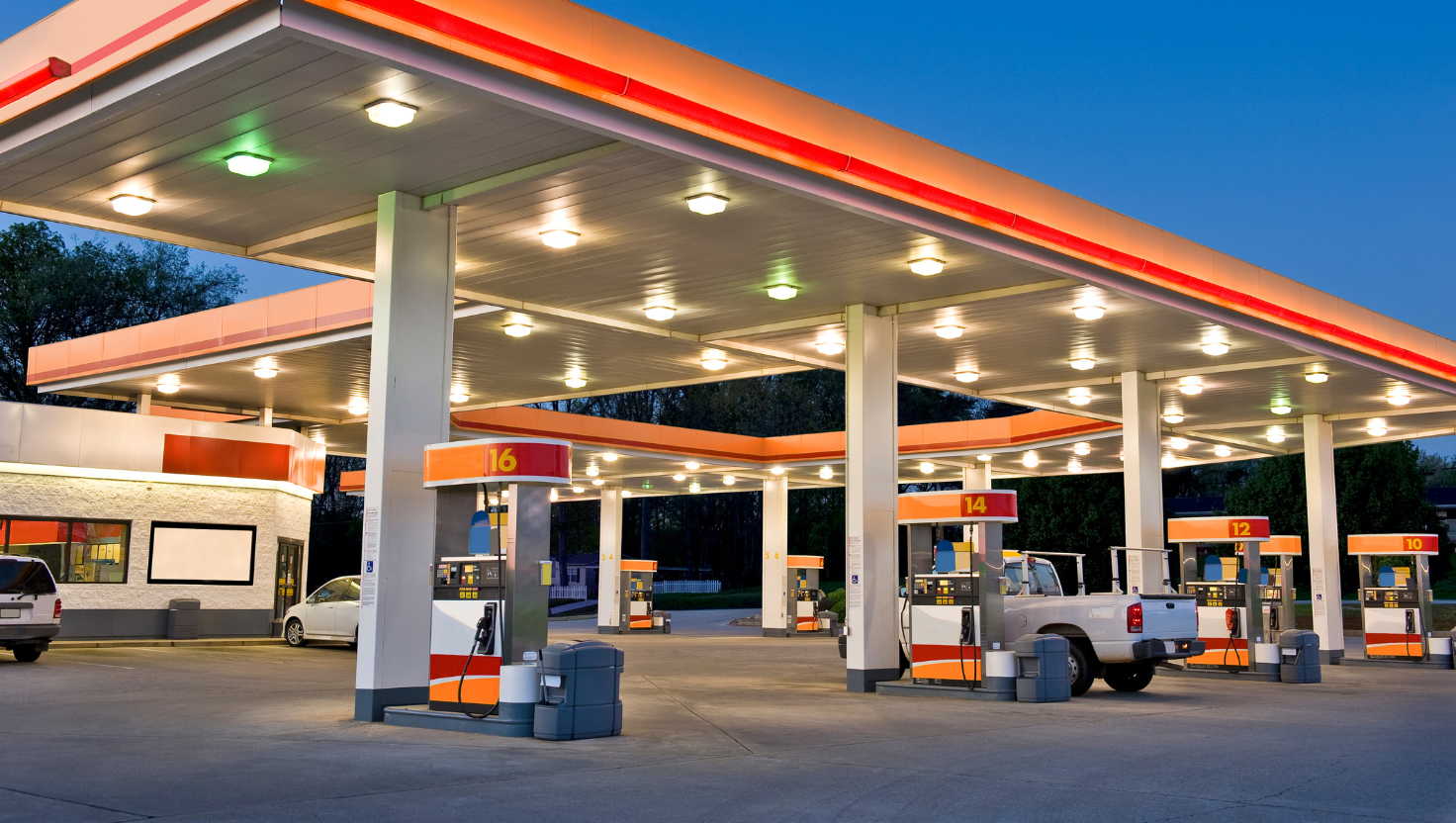

Convenience Store
Perfect for high-turnover convenience formats where pricing accuracy and speed matter most. ESLs eliminate the gap between your system price and shelf price.
Reduce staff time spent on manual label changes
Accurate shelf pricing at all times
NFC-enabled for flexible shelf placement
Compact label options for tight shelf spaces
Cold Storage & Freezer
Specialised freezer-rated labels (LS0266-C and LS0350-C) operate in temperatures down to -25°C — ideal for frozen food aisles and cold storage environments.
Rated to -25°C operating temperature
No condensation issues with sealed design
Same wireless update capability as standard labels
10-year battery life in cold conditions
Clothing & Apparel
Enable rapid markdown cycles and end-of-season promotions without the print cost. NFC support allows flexible repositioning as your store layout evolves.
Rapidly execute store-wide sale events
NFC for easy repositioning on rail and shelf
Precision marketing information display
Supports multi-location management from one platform
Display Technology
4-colour EPD display
Go beyond black and white. Our labels support black, white, red, and yellow — enabling rich promotional displays that catch the customer's eye.
Easy promotional theme switching
Switch to sale mode across every label in your store instantly
NFC-enabled repositioning
Flexible placement to meet changing store layouts
Smart retail integration
Enhances stock management accuracy and shopping experience
Live Preview
$3.49
SALE PRICE
$12.99
SPECIAL
$8.99
Regular
$24.95
PREMIUM
Simulated display examples
Product Range
LANSON ESL Series
15 models from 1.54" to 13.3" — find the right label for every shelf type and store format.

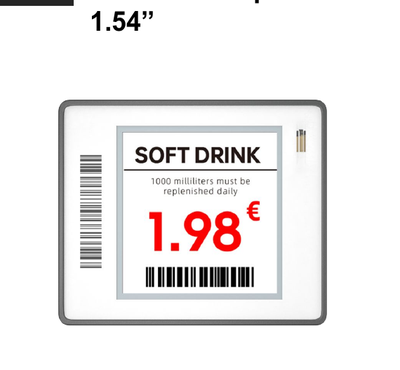

LS0154
1.54" 4-Colour ESL
Specifications
Product Size46.69 × 37.57 × 12.5 mm
Screen Size27 × 27 mm
Resolution200 × 200 pixel
Pixel Density188 DPI
Display ColoursBlack, White, Red, Yellow
BatteryCR2450 × 1pc / 600 mAh
Battery Lifespan6 Years (2×/Day)
Operating Temp0 ~ 40°C
NFCStandard
Operating Frequency2405 ~ 2480 Hz

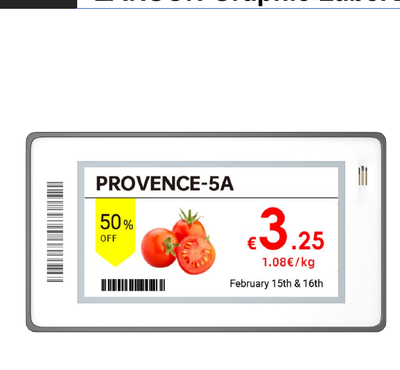

LS0213
2.13" 4-Colour ESL
Specifications
Product Size68.57 × 36.48 × 12.5 mm
Screen Size48.5 × 23.7 mm
Resolution250 × 122 pixel
Pixel Density130 DPI
Display ColoursBlack, White, Red, Yellow
BatteryCR2450 × 2pc / 1200 mAh
Battery Lifespan10 Years (4×/Day)
Operating Temp0 ~ 40°C
NFCStandard
Operating Frequency2405 ~ 2480 Hz

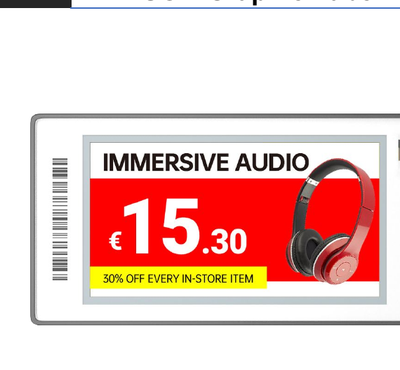

LS0266
2.66" 4-Colour ESL
Specifications
Product Size81.37 × 41.97 × 12.5 mm
Screen Size60 × 30.7 mm
Resolution296 × 152 pixel
Pixel Density125 DPI
Display ColoursBlack, White, Red, Yellow
BatteryCR2450 × 2pc / 1200 mAh
Battery Lifespan10 Years (4×/Day)
Operating Temp0 ~ 40°C
NFCStandard
Operating Frequency2405 ~ 2480 Hz

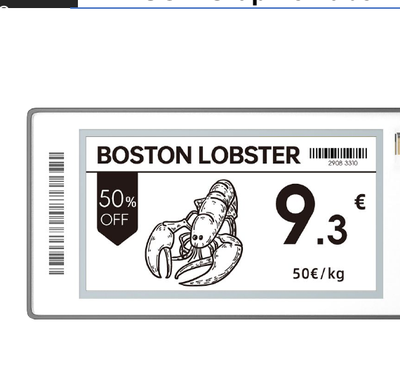

LS0266-C
2.66" Freezer ESL
Specifications
Product Size81.37 × 41.97 × 12.5 mm
Screen Size60 × 30.7 mm
Resolution296 × 152 pixel
Pixel Density125 DPI
Display ColoursBlack, White
BatteryCR2450 × 2pc / 1200 mAh
Battery Lifespan10 Years (4×/Day)
Operating Temp-25 ~ 10°C ❄️
NFCStandard
Operating Frequency2405 ~ 2480 Hz

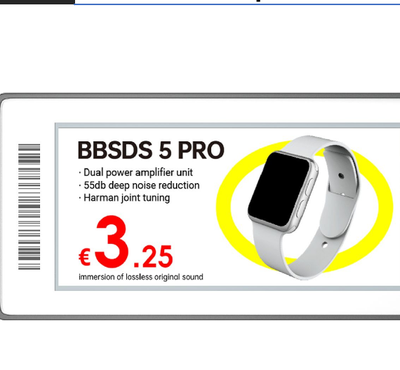

LS0290
2.9" 4-Colour ESL
Specifications
Product Size88.37 × 42.47 × 12.5 mm
Screen Size66.9 × 29 mm
Resolution296 × 128 pixel
Pixel Density112 DPI
Display ColoursBlack, White, Red, Yellow
BatteryCR2450 × 2pc / 1200 mAh
Battery Lifespan10 Years (4×/Day)
Operating Temp0 ~ 40°C
NFCStandard
Operating Frequency2405 ~ 2480 Hz

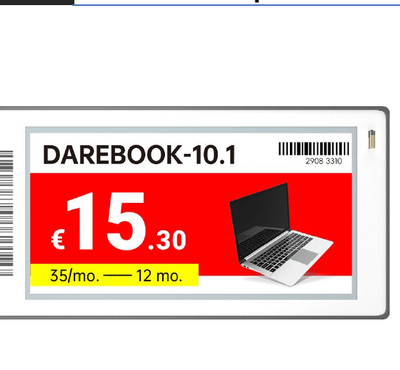

LS0350
3.5" 4-Colour ESL
Specifications
Product Size101.12 × 50.6 × 12.5 mm
Screen Size79.68 × 38.18 mm
Resolution384 × 184 pixel
Pixel Density122 DPI
Display ColoursBlack, White, Red, Yellow
BatteryCR2450 × 2pc / 1200 mAh
Battery Lifespan10 Years (4×/Day)
Operating Temp0 ~ 40°C
NFCStandard
Operating Frequency2405 ~ 2480 Hz

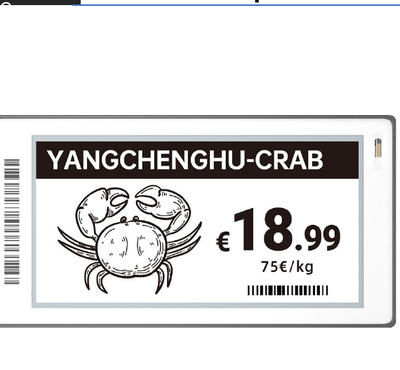

LS0350-C
3.5" Freezer ESL
Specifications
Product Size101.12 × 50.6 × 12.5 mm
Screen Size79.68 × 38.18 mm
Resolution384 × 184 pixel
Pixel Density122 DPI
Display ColoursBlack, White
BatteryCR2450 × 2pc / 1200 mAh
Battery Lifespan10 Years (4×/Day)
Operating Temp-25 ~ 10°C ❄️
NFCStandard
Operating Frequency2405 ~ 2480 Hz

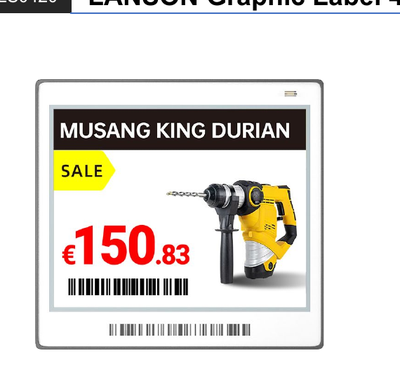

LS0420
4.2" 4-Colour ESL
Specifications
Product Size96.56 × 86.56 × 13.1 mm
Screen Size84.8 × 63.6 mm
Resolution400 × 300 pixel
Pixel Density120 DPI
Display ColoursBlack, White, Red, Yellow
BatteryCR2450 × 3pc / 1800 mAh
Battery Lifespan10 Years (4×/Day)
Operating Temp0 ~ 40°C
NFCStandard
Operating Frequency2405 ~ 2480 Hz

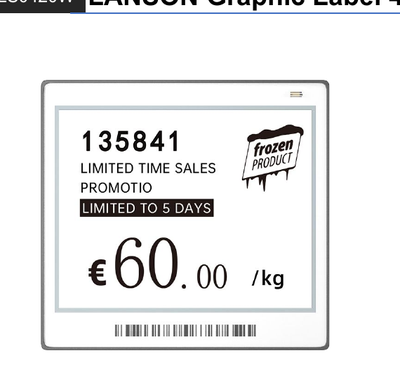

LS0420-W
4.2" 3-Colour ESL
Specifications
Product Size96.56 × 86.56 × 13.1 mm
Screen Size84.8 × 63.6 mm
Resolution400 × 300 pixel
Pixel Density120 DPI
Display ColoursBlack, White, Red
BatteryCR2450 × 3pc / 1800 mAh
Battery Lifespan10 Years (4×/Day)
Operating Temp0 ~ 40°C
NFCStandard
Operating Frequency2405 ~ 2480 Hz

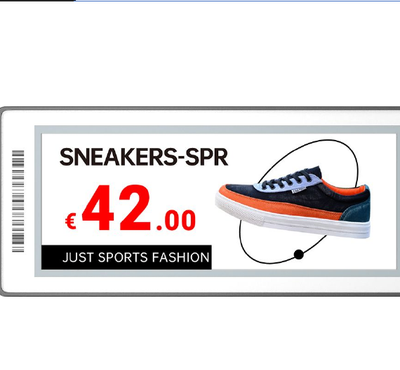

LS0437
4.37" 4-Colour ESL
Specifications
Product Size129 × 53 × 13.1 mm
Screen Size104.16 × 38.19 mm
Resolution480 × 176 pixel
Pixel Density117 DPI
Display ColoursBlack, White, Red, Yellow
BatteryCR2450 × 2pc / 1200 mAh
Battery Lifespan10 Years (4×/Day)
Operating Temp0 ~ 40°C
NFCStandard
Operating Frequency2405 ~ 2480 Hz

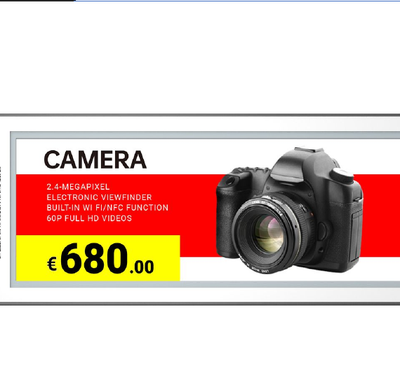

LS0579
5.79" 4-Colour ESL
Specifications
Product Size165.06 × 64.06 × 14.65 mm
Screen Size139 × 47.74 mm
Resolution792 × 272 pixel
Pixel Density144 DPI
Display ColoursBlack, White, Red, Yellow
BatteryCR2450 × 2pc / 1200 mAh
Battery Lifespan10 Years (4×/Day)
Operating Temp0 ~ 40°C
NFCStandard
Operating Frequency2405 ~ 2480 Hz

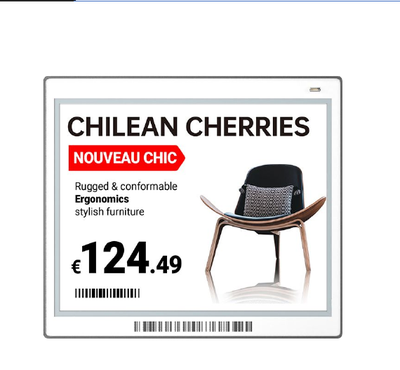

LS0583
5.83" 4-Colour ESL
Specifications
Product Size132.44 × 111.26 × 14.8 mm
Screen Size118.78 × 88.22 mm
Resolution648 × 480 pixel
Pixel Density138 DPI
Display ColoursBlack, White, Red, Yellow
BatteryCR2450 × 4pc / 2400 mAh
Battery Lifespan10 Years (4×/Day)
Operating Temp0 ~ 40°C
NFCStandard
Operating Frequency2405 ~ 2480 Hz

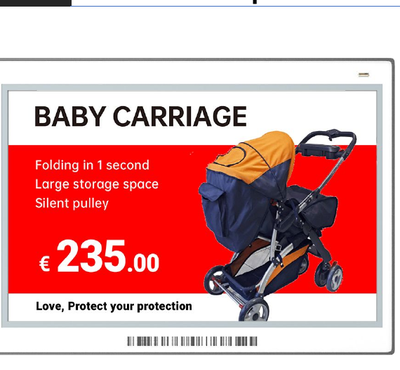

LS0750
7.5" 4-Colour ESL
Specifications
Product Size178.63 × 125.42 × 16 mm
Screen Size163.2 × 97.9 mm
Resolution800 × 480 pixel
Pixel Density124 DPI
Display ColoursBlack, White, Red, Yellow
BatteryCR2450 × 6pc / 3600 mAh
Battery Lifespan10 Years (4×/Day)
Operating Temp0 ~ 40°C
NFCStandard
Operating Frequency2405 ~ 2480 Hz

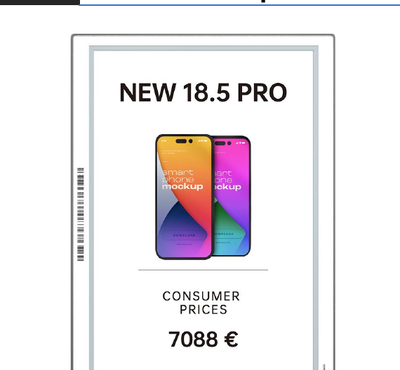

LS0970
9.7" 4-Colour ESL
Specifications
Product Size221.8 × 169 × 16 mm
Screen Size201.6 × 141.12 mm
Resolution960 × 672 pixel
Pixel Density121 DPI
Display ColoursBlack, White, Red, Yellow
BatteryCR2450 × 6pc / 3600 mAh
Battery Lifespan10 Years (4×/Day)
Operating Temp0 ~ 40°C
NFCStandard
Operating Frequency2405 ~ 2480 Hz

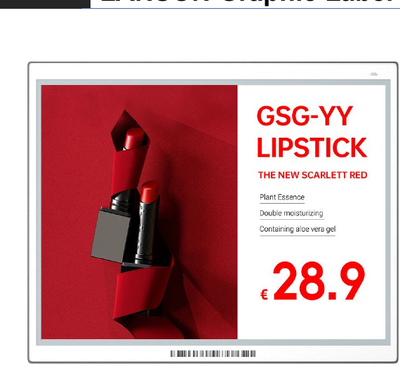

LS1330
13.3" 4-Colour ESL
Specifications
Product Size296 × 230.5 × 16 mm
Screen Size275.52 × 195.16 mm
Resolution960 × 680 pixel
Pixel Density88 DPI
Display ColoursBlack, White, Red, Yellow
BatteryCR2450 × 6pc / 3600 mAh
Battery Lifespan10 Years (4×/Day)
Operating Temp0 ~ 40°C
NFCStandard
Operating Frequency2405 ~ 2480 Hz
Video
ESL Modules
models from 1.54" to 13.3" — find the right label for every shelf type and store format.
Ready to go paperless?
Vision2Display provides end-to-end ESL solutions with local Australian support, installation, and training. Contact us today for a tailored quote.
